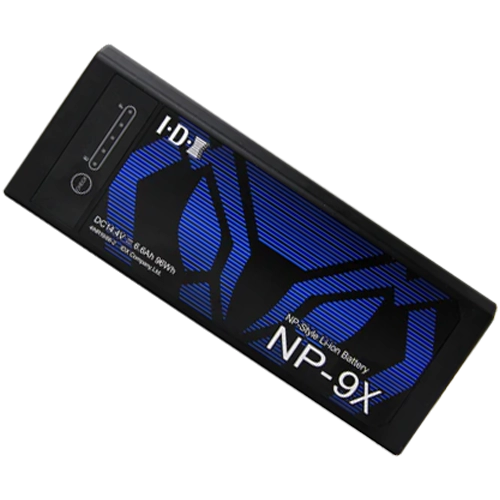

NP-9X (96Wh Li-Ion NP-Style Battery w 2x D-Tap)

  • $223.00

NP-9X is the successor of the NP-L7S, the industry standard NP-style battery for powering audio equipment. It now features more capacity at 96Wh, two D-Tap outputs for powering additional accessories, and also a 5 LED power indicator to display remaining capacity in 10% increments. One of the D-Tap port is a D-Tap Advanced, which can also be used to charge the battery with the IDX VL-DT1 D-Tap charger. NP-9X is still compatible with all current accessories and chargers like the JL-2PLUS.


Capacity: 96Wh (14.4V/ 6.6Ah)
Max Output Voltage: 16.8V DC
Nominal Voltage: 14.4V DC
Max Discharge Current: 4.6A‡ ( total of main connector and d-taps )
End Voltage: 11V
D-Tap: 50W each
D-Tap Advanced: Compatible only with IDX VL-DT1 charger
Battery Protection: Over charge, Over discharge, Over current, Thermal protection
Ambient Temperature: To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)
To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)
To store: -4°F ~ 104°F
Dimensions: 7.26(W) x 2.80(H) x 0.97(D) inches
Weight: 1.15 lbs approx.
Included Accessories: Terminal cover
‡ may vary depending on the operating temperature
