PSC Power Star Mini BDS

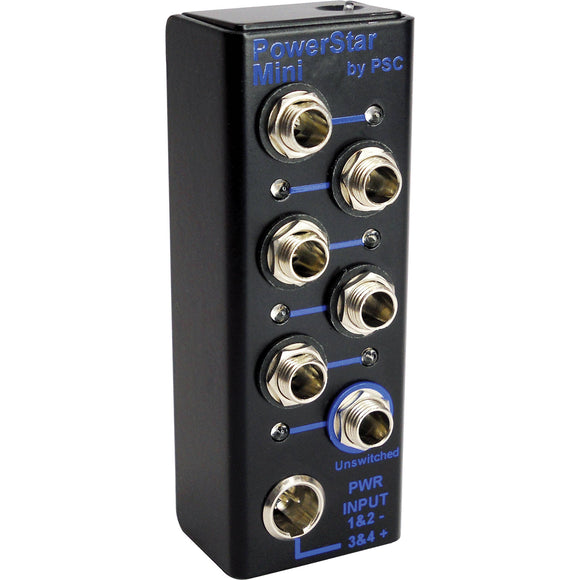

The PSC Power Star Mini power distribution system provides a convenient way of distributing clean, quiet, reliable 12Vdc to all of your ENG audio equipment from a single rechargeable battery. The PSC Power Star Mini features six outputs. Each of these outputs is designed to deliver up to 3 amps of continuous current. The Power Star Mini has a global (total) current limit of 5 amps. A top panel mounted lighted power switch controls the entire operation. This power switch always controls five of the six output power connectors. The sixth connector may be controlled by this power switch or left un-switched (always on). This sixth connector is conveniently marked with a blue ring surrounding the connector. Internally, there is a small jumper to select switched or un-switched operation for this connector.

The Power Star Mini features PSC’s exclusive Silent Power Technology™ designed to filter out unwanted switch mode noise and RF interference from your power lines. These exclusive PSC filters will ensure you of clean, quiet recordings in the field by minimizing unwanted inter-modulation noise, RF interference and other noise sources. Our RF filtering will provide better than 34dB of RF isolation between outputs, the best in the industry. In addition, each of the PSC Power Star Mini’s six output connectors are individually polyfuse protected and monitored for short circuits. Convenient front panel status LED’s indicated an overloaded output. Power input is via a 4 pin mini XLR connector. Optional NP-1 battery cup and an assortment of PSC power cable are available. The PowerStar Mini features reverse polarity protection, genuine Switchcraft™ connectors, a sturdy aircraft aluminum case, tough powder coat finish and a removable stainless steel belt clip.
